UCOS-HIFU

High Intensity Focused Ultrasound System

Management based on respect &
Value creation for customers

BE&BI Tech pursues the happiness of all customers as its top priority.

In the BE&BI Tech’s new CI, the outer circles represent planet Earth where the five major oceans and the six continents are organically connected as one, and the face in the middle represents people living together in harmony in the world.
The new CI symbolizes our company’s strong commitment and management philosophy to create values for customers and practice management based on respects for people.
BE&BI Tech is focused on convergence therapy systems and skin care treatment systems, and continues to innovate by developing state-of-the-art convergence source technologies. BE&BI Tech is committed to developing new technologies for human health, and we’ll continue to strive hard to bring bigger satisfaction and happiness to our customers.

心 Heart / Filled with warmth and enthusiasm
氣 Energy / Filled with ambition and energy
情 Attachment / Growing together with customers

●Customer Satisfaction ●Customer Impressions & Feelings ●Customer Happiness

Characteristic

High Intensity Focused Ultrasound System

The UCOS-HIFU has the advantage of removing wrinkles and lifting the skin without performing surgical procedures directly on the skin. The HIFU is an indirect treatment with little damage and no side effects to the upper skin area. With relatively small amount of treatment time of 10 to 30 minutes, it can improve skin elasticity and remove fine wrinkles. The users can also go back to their daily life right after the treatment procedure without any side effects.
The UCOS-HIFU system can be used for local areas to prevent damage to skin tissues. The system is used to remove wrinkles, drooping eyelids, wrinkles around the chin, around the eyes and around the mouth, and to restore skin elasticity and regeneration capability. As the skin is lifted through regeneration of elastin and collagen from the skin’s inner layer SMAS(fiber membrane layer, Superfacial Muscular Aponeurotic System) tissues, repeated treatment using existing skincare devices becomes unnecessary. Also, the tissues newly formed in the skin’s inner layer by the treatment last for a long period of time.

Technical Principles
Technology History

Treatment Theory

Operation Principles

High Intensity Focused Ultrasound
High intensity ultrasound energy is transmitted to the skin at a depth of 1.5 to 13mm below the surface of the skin to generate a thermal coagulation area, the size of which is of less than 1mm. At the thermal coagulation area, a high heat of more than 60 degrees is generated. By constantly forming the thermal coagulation point on the target layer, the area is regenerated by pulling and shrinking the surrounding skin tissues.
Product principle
Generate HIFU(High-Intensity Focused Ultrasound)
▼
Using probe, ultrasound focusing beneath skin.
▼
Renewing elastin and collagen.
▼
Skin looking smooth, elastic, and healthy.

View Larger

HD-1.5

View Larger

HD-3.0

View Larger

HD-4.5

Skin penetration pattern

High-Intensity Focused Ultrasound transmitted from the dermis to the SMAS layers!

HIFU(High Intensity Focused Ultrasound)
Is delivered into the deep skin fractionally.
▼
Cause thermal coagulation to SMAS (Super facial Muscular Aponeurotic System), fascia, deep dermis and subcutaneous fibrous tissue
▼
By wound healing, skin tightening and rejuvenation happens gradually with time

UCOS-HIFU transmission depth

HD-1.5mm

Formation of thermal coagulation
points in 1.5mm deep dermis layer

HD-3.0mm

Formation of thermal coagulation
points in 3.0mm deep dermis layer
leading to increased skin elasticity

HD-4.5mm

Formation of thermal coagulation points
in 4.5mm deep SMAS layer leading to
elastin and collagen regeneration

HIFU Lifting Operation Principles

The treatment coagulation points in 4.5mm-deep fiber membrane (SMAS) layers, and elastin and collagen playback reaction takes place around the coagulation points, resulting in removal of wrinkles and increased skin elasticity as the tissues are pulled together tighter

Product Features

The UCOS-HIFU System has been created to meet the 8 conditions required for beautiful skin!!!

BODY SHAPING
Body skin tightening & Contour shaping

Collagen regeneration
Pigment improvement
V-lines
Volumizing effect

FACE LIFTING & TIGHTENING
Wrinkle reduction & Face rejuvenation

Improvement of the skin’s texture
Tightening
Lifting
Elasticity improvement

Efficacy

The UCOS HIFU System can be applied to the facial area for skin lifting and tightening, and to improve wrinkles and skin elasticity around the eyes, face, neck,
cheek skin, nasolabial folds, forehead, cheeks, lips, and jaw line. It can also be used to improve aging problems and the body line to the greatest effect.

Face lifting
Skin tightening
Wrinkle reduction
Face rejuvenation
Eyebrow lifting
Firming of the face
Firming of the neck
Firming of the cheeks
Firming of the jawline
Anti-aging, wrinkles
Fine lines smoothing
Body skin tightening

Contour shaping
Cellulite reduction
Non-surgical
Non invasive
No recovery time
Deep to lift SMAS
Immediate effects
More precise and safe treatment

Application for Face

Skin Rejuvenation / Tightening Skin

Forehead Lifting

Eyebrows

Cheek

Smile Line

Lips Contours

Jawline

Eyelids

Dark Circle

Skin Tone Improvement

V-Line Forming

Double Chin

Neck Wrinkles

For Facial

HD-1.5

4MHz /
Length 28mm

Remove wrinkles
around the eyes,
eye brows, nose

HD-3.0

4MHz /
Length 28mm

Remove nasolabial
lines and wrinkles
in facial area,
including forehead and cheeks

HD-4.5

4MHz /
Length 28mm

Remove nasolabial
lines and wrinkles in
cheeks, double chins,
neck, chest

Slim Type

HD-1.5

4MHz /
Length 20mm

Remove wrinkles
around the eyes,
eye brows, nose

HD-3.0

4MHz /
Length 20mm

Remove nasolabial
lines and wrinkles
in facial area,
including forehead and cheeks

HD-4.5

4MHz /
Length 20mm

Remove nasolabial
lines and wrinkles in
cheeks, double chins,
neck, chest

Application for Body

Fat reduction / Skin aging prevention / Increased Skin Elasticity
Side / Thigh / Cellulite / Chest / Arm / Abdomen

For Body

HD-7

For skin elasticity improvement
and fat reduction in the chest,
shoulder and forearm areas
HD-7mm

HD-10

For skin elasticity improvement
and fat reduction in the side
and leg areas
HD-10mm

HD-13

For skin elasticity improvement
and fat reduction in the
abdomen and thigh areas
HD-13mm

Ultrasound detail treatment area

Various Operation part (facial area)

UCOS-HIFU Various Operation Parts of the Product

Operation part(facial area) Lifting & Tightening (HIFU 1.5mm, 3.0mm, 4.5mm)

Cartridge 1.5mm / 4MHz

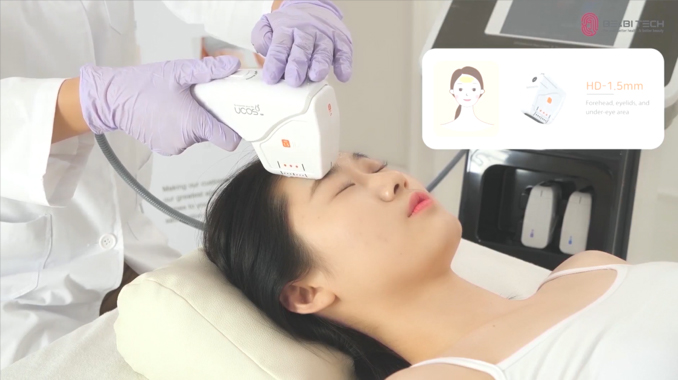

HD-1.5(facial area)

Thin wrinkles around the eye area,
Under the eyes, eyebrows, nose area, etc.

Cartridge 3.0mm / 4MHz

HD-3.0(facial area)

Facial areas such as forehead,
cheeks, nasolabial folds, etc.

Cartridge 4.5mm / 4MHz

HD-4.5(facial area)

Facial areas such as double chins,
neck wrinkles, chest, etc.

Various Operation part (body area)

UCOS-HIFU Various Operation Parts of the Product

Operation part( body area) Shaping (HIFU 7mm, 10mm, 13.0mm)

Facial area (forehead, nose, cheeks, under the eyes, chin, chest) lifting
Body (abdomen, arms, armpits, thighs, lower legs, waist) lifting
Non-invasive and can be used for 10 to 30 minutes, after which you can return to your daily life
Selectively transmits ultrasonic heat to a deeper level than laser or high frequency treatments
Immediate treatment of fine wrinkles, with long-lasting and elastic skin maintenance and body shape management

Cartridge 7mm / 4MHz

HD-7(body area)

For skin elasticity improvement and fat reduction in the chest,
axillar and arms.

Cartridge 10mm / 4MHz

HD-10(body area)

For skin elasticity improvement and
fat reduction in the flank and lower legs

Cartridge 13mm / 4MHz

HD-13(body area)

For skin elasticity improvement and
fat reduction in the abdomen, hip and thigh

Preclinical Experiment Research

IHC(collagen) Evaluation

14^th Day After Treatment

1J (Energy)

2J (Energy)

3J (Energy)

The collagen bundle that forms the septum is thickened to 4~5 layers. The energy increasefrom 1J to 3J
produced more noticeable reaction, but at 3J, some of the inflammatory reaction in the skin were observed.

28^th Day After Treatment

1J (Energy)

2J (Energy)

3J (Energy)

The collagen bundle, which has increased for 14 days, is well maintained.

Full-time testing using mini-pig showed an increase in the generation of collagen two weeks after appropriate coagulation points were generated at 4.5mm depth for all groups when the H&E dye, MT dye, and IHC dye were observed.

The UCOS-HIFU produced coagulation points within the appropriate biocompatible skin and it was observed that collagen was generated well.
the recommended energy will also be used to perform the procedure more safely without the risk of skin burn or other side effects.

Clinical Trial and Evaluation

Yonsei Wonju Serverance Christian Hospital, Department of Plastic Surgery / Clinical Center

Demonstration of Wrinkle Removaland Improvement of Chin Line with Stability(20 Clinical Cases)

The result from 20 clinical cases of neck area treatment

Neck wrinkles removed by 90% from objective observation / All patients felt satisfied
After treatment, wrinkles stayed gone and the elastic skin was maintained from the continuous regeneration of collagen
There were very few side effects, such as red sports, and it was evaluated as a safe and effective treatment

Demonstration of Skin Elasticity Improvement and Effectiveness of Treatment (47 clinical cases)

The result from 47 clinical cases of forehead area treatment

Forehead wrinkles removed by 86% from objective observation after 30 days
Skin was lifted by 2mm on the AEH and the skin elasticity was maintained after 90 days of treatment
Patients’ satisfaction level was very high after the treatment

Core Technology

Automatic Resonance Frequency Setting

Equipped with an internal Pressure Regulator

Special Type of Manufactured Shaft Ring

Ultraviolet Disinfection Device

8” TFT LCD User Interface

Feeling mode Setting

Cartridges by each body part

Cartridge storage

User Friendly Interface Touchscreen

1.Parameter Adjust parameter values in the current display

2.Total usage count Display the total cartridge usage count of the day

3.Parameter display Display the set values of parameter

4.Memory button Button for loading parameter values from the memory

5.Adjustment Button for adjusting the values of parameter

6.Usage count by cartridge Display the accumulated usage count by cartridge that has been applied to the current patient. Press ‘Reset’ button to reset the count value

7.Ready / Standby mode Button for switching between Ready mode and Standby mode

8.Configuration mode Button for moving to the configuration mode for parameter setting

Convenient User Interface

Initial display

Configuration mode display

1 Ultrasonic output energy, interval pain relief control function
2 Displays the remaining life and information about the combined cartridges
3 The cartridge count used by the current patient
4 Memory function mode

Configuration mode display

Specifications

Precautions before use

Before the procedure, it is indicated by decision and marking
of the treatment area, followed by simple cleansing and then
anesthetic cream Performed by the practitioner. When you perform
the procedure after selecting and fitting the cartridge for the
procedure area.
If you do not perform anesthesia before the procedure, you may
get pain from the skin impact of the focused ultrasound.

Precautions when using

You should refrain from sauna, smoking or drinking for about a week after the procedure.
When you go out, you must apply sunscreen..
You can make up immediately after the procedure, but you should refrain from making too much makeup..
After the procedure, the skin may temporarily become red, but it will disappear immediately.
I do not do the procedure for the part already done.
Performed only by specialists.
